CARBON OFFROAD 12K WINCH
Description

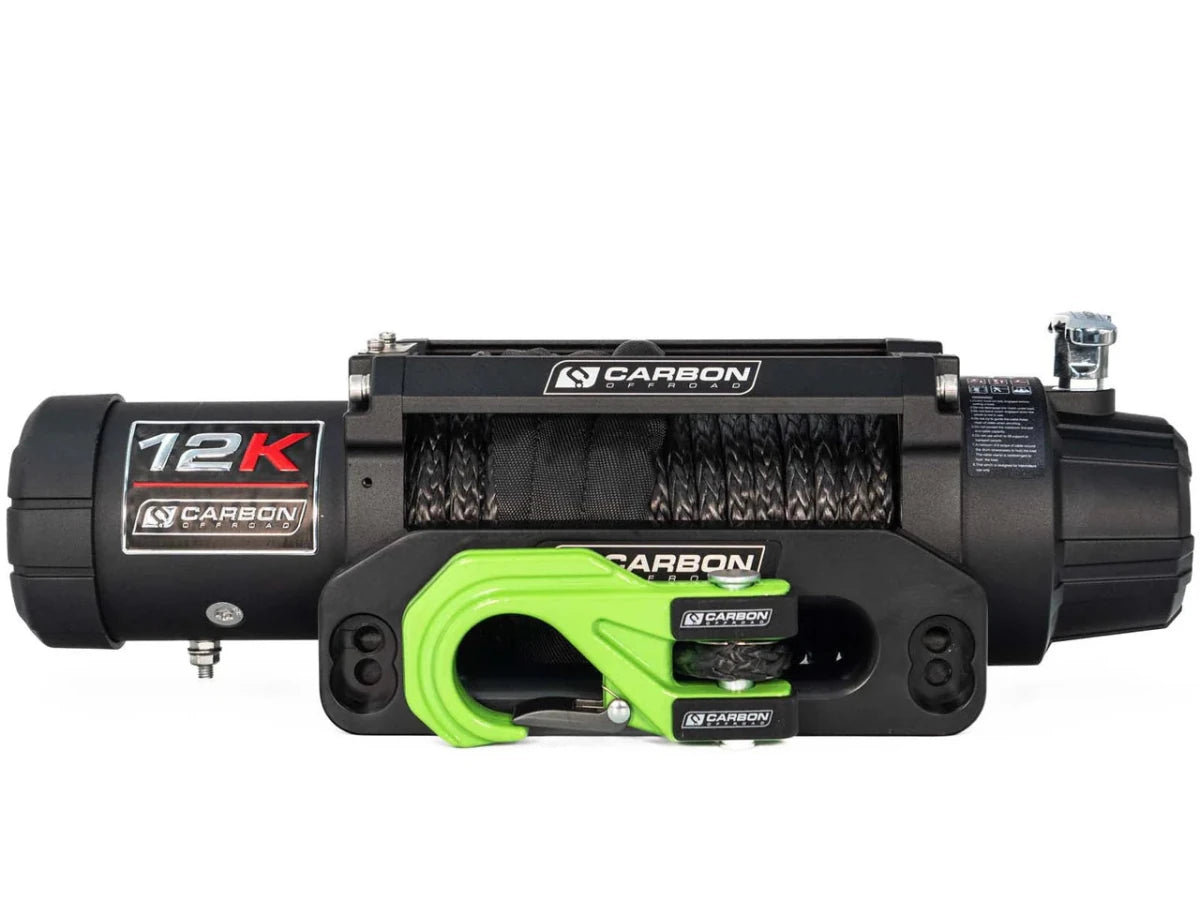

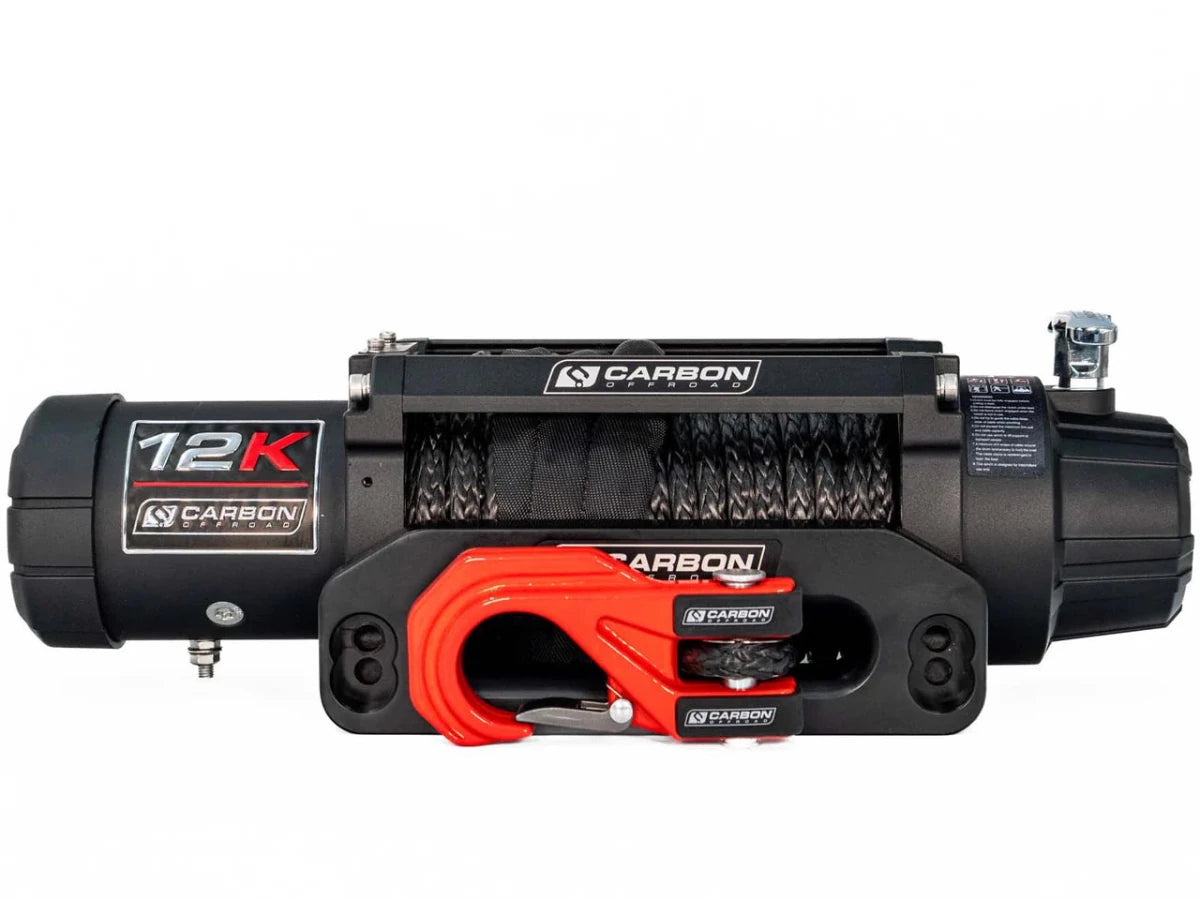

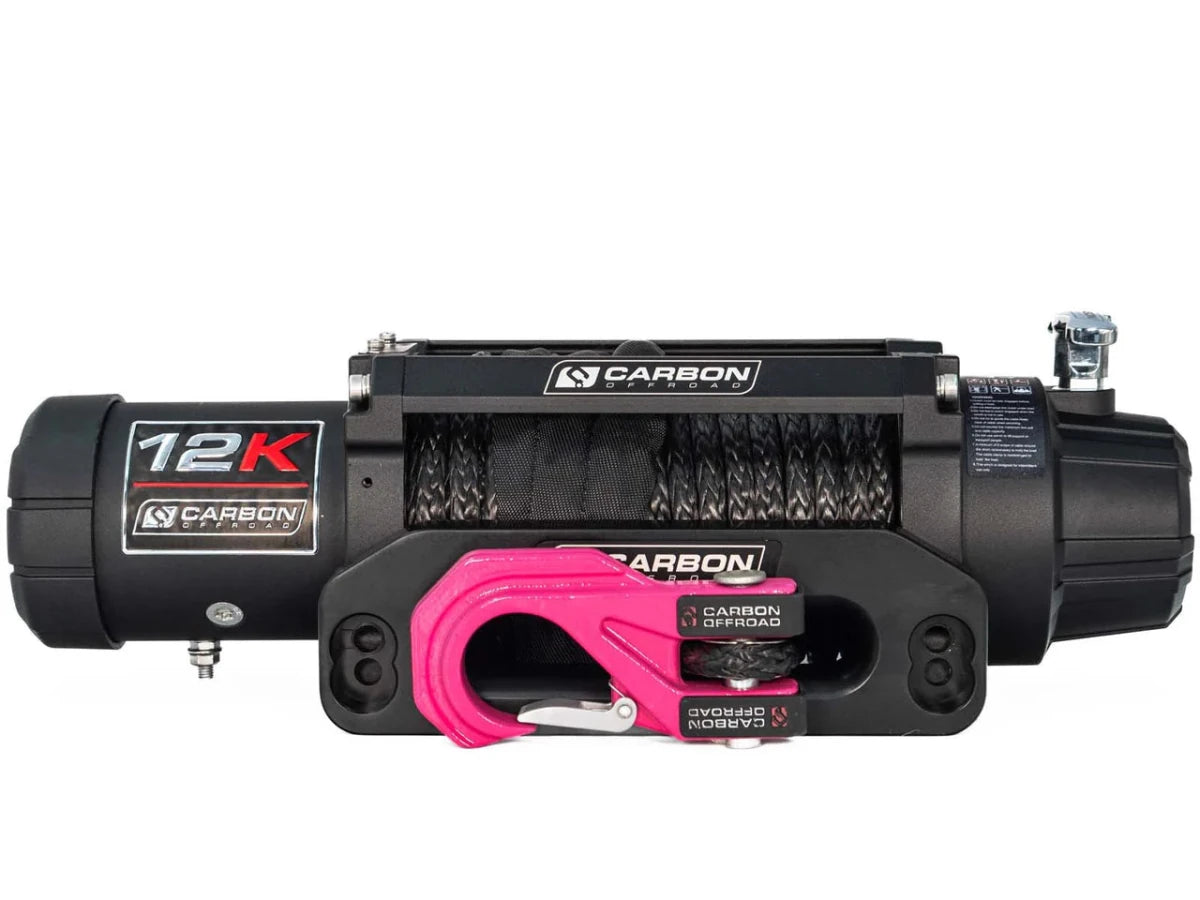

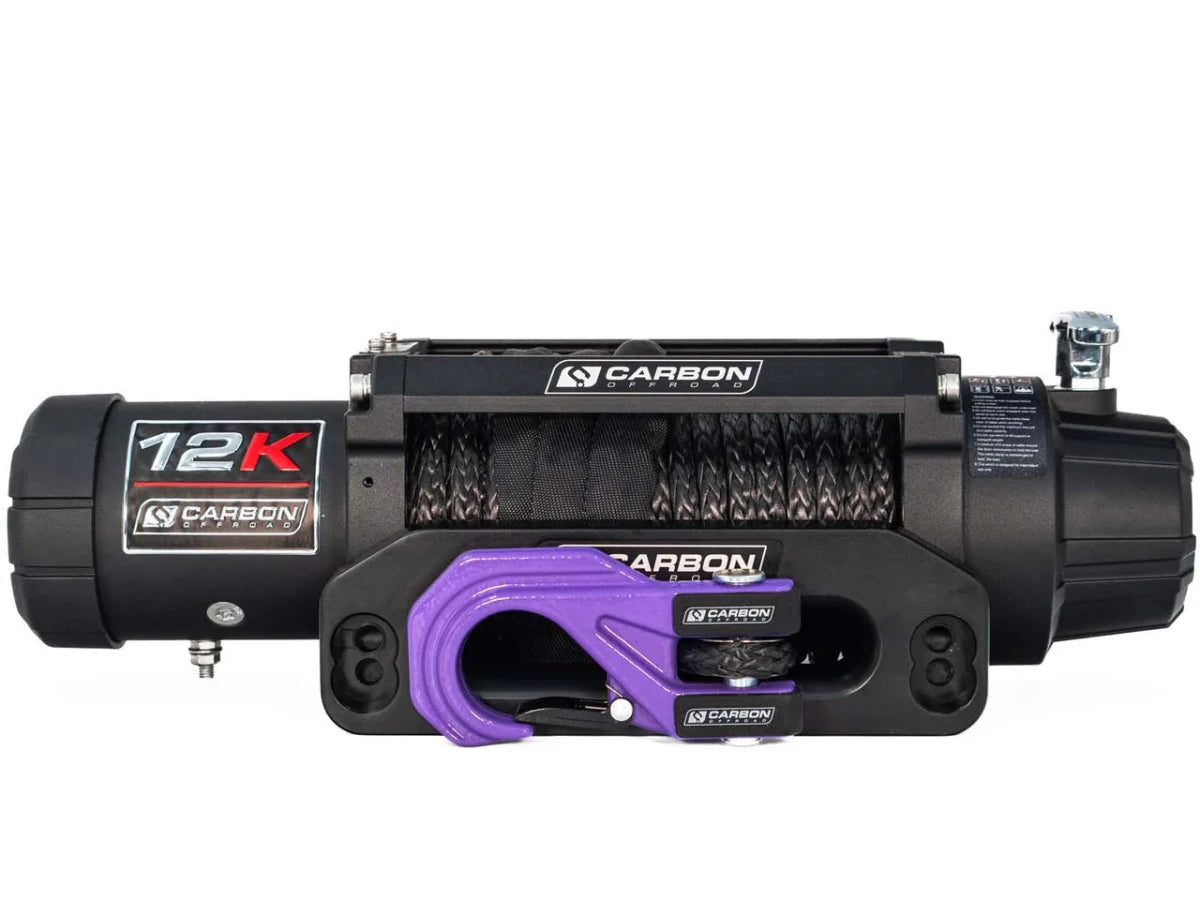

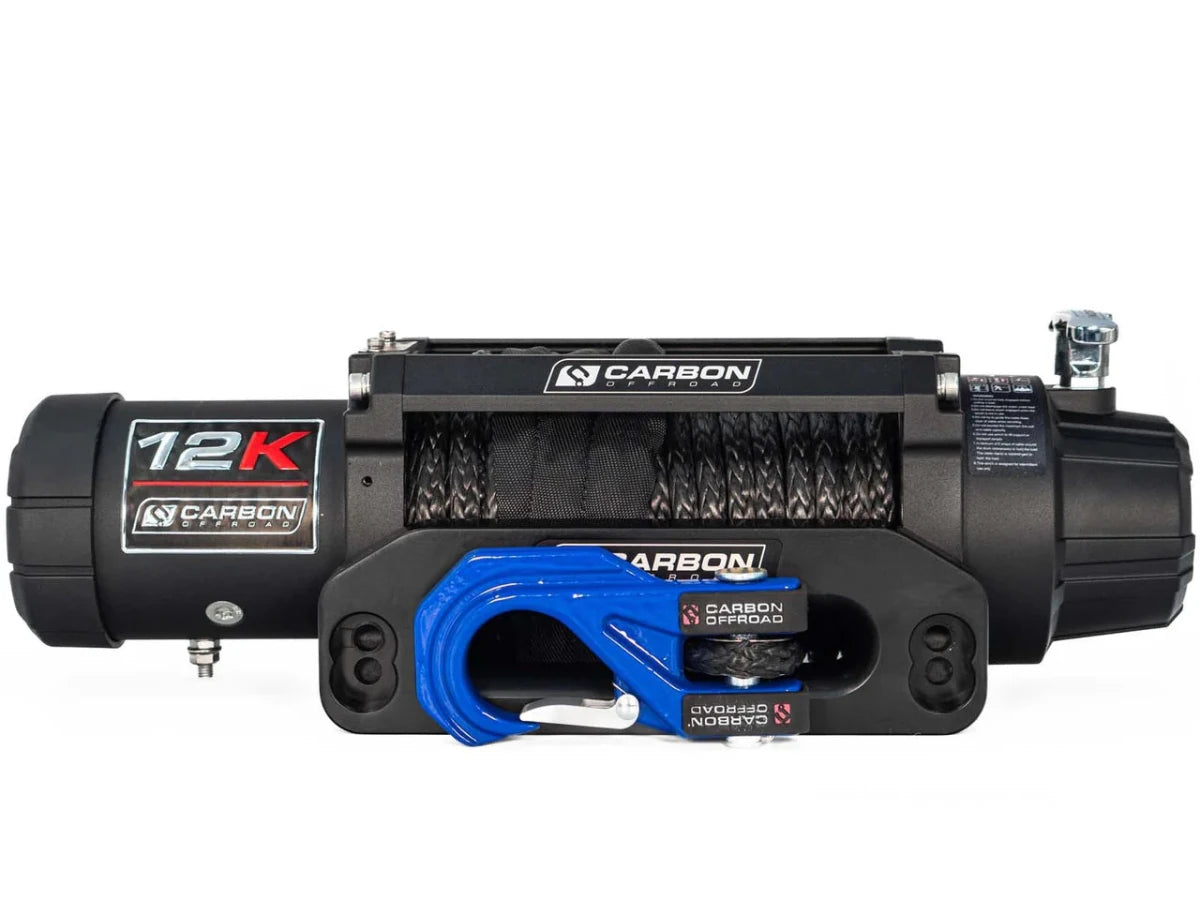

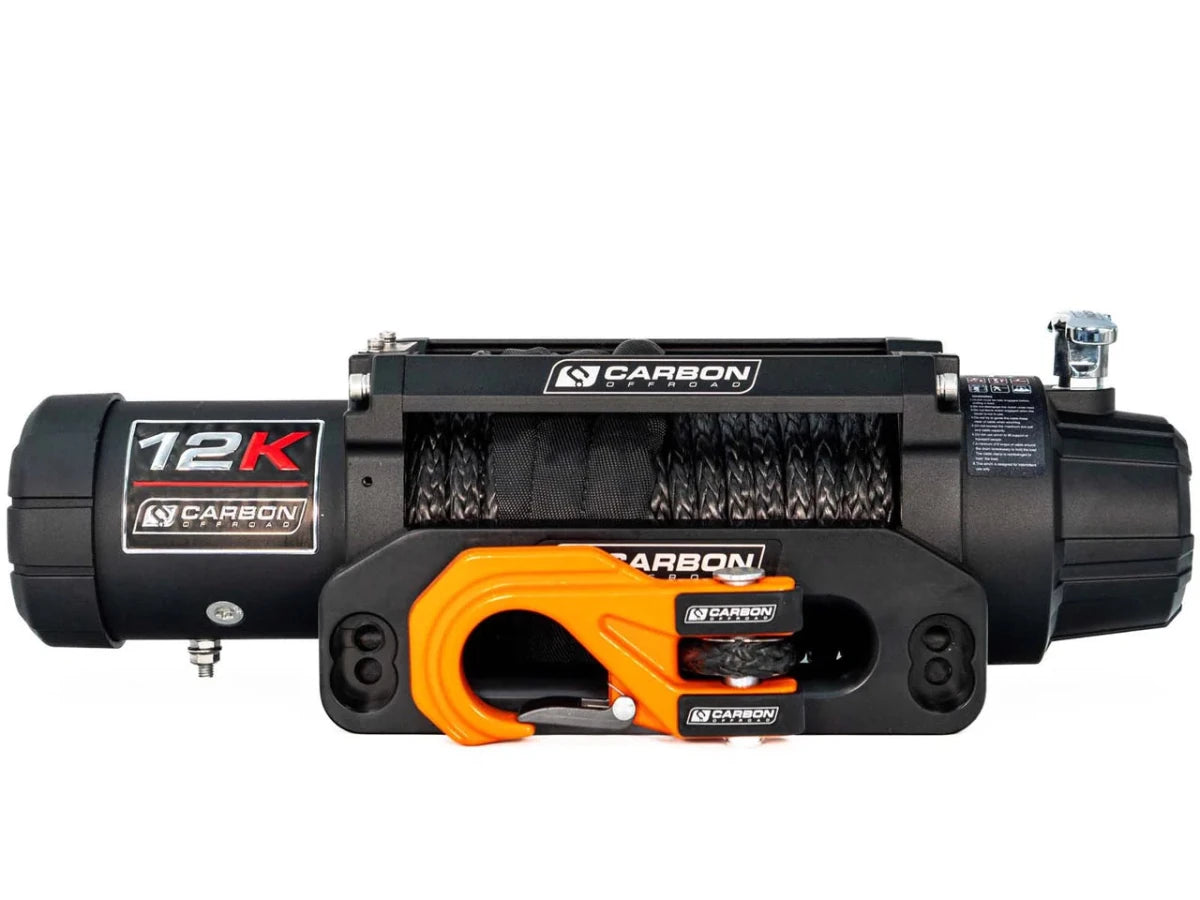

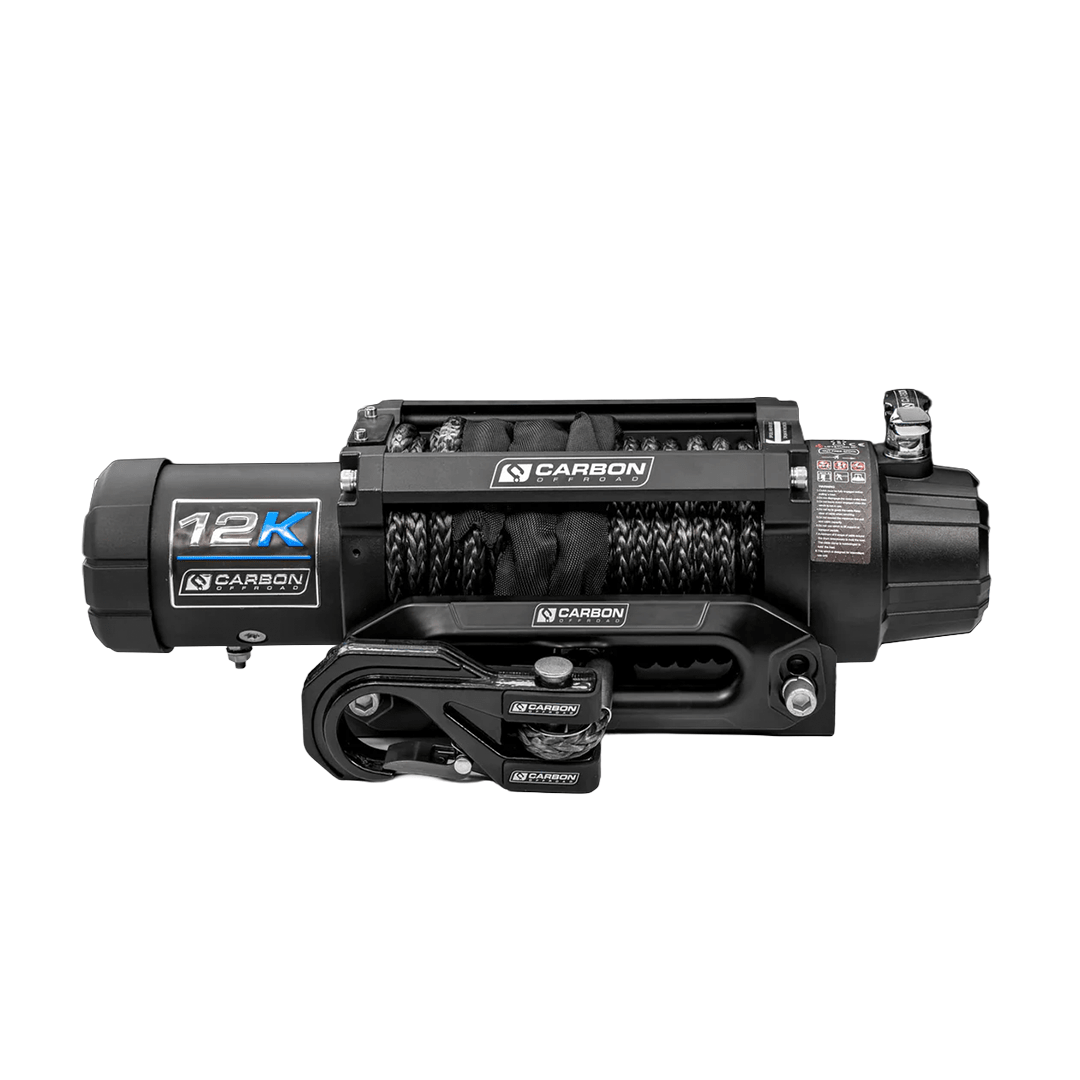

The Carbon Offroad 12K electric winch delivers 12,000 lbs of single line pull with IP68 waterproof protection, a 6.2HP series wound motor and a class leading weight of just 19.0 kg, backed by a 5 year warranty and lifetime geartrain guarantee.
Key Features
- 12,000 lb rated line pull 5,450 kg single line capacity to handle serious recoveries in any terrain.
- IP68 waterproof rated dust sealed and submersible in freshwater up to 1.5 m for 30 minutes. Breathable membrane motor breather handles heat expansion and contraction.
- Wireless and wired remote included operate from the safety of your driver's seat with the wireless remote or the 3.7 m wired controller.
- Lightest in class at 19.0 kg keeps weight off your front end without sacrificing pulling power.
- 3 stage planetary geartrain 216:1 gear ratio for smooth, reliable line speed under load.
- 6.2HP 12V series wound motor delivers consistent power through demanding pulls. 24V option available.
- 24 m x 10 mm synthetic rope lighter and safer to handle than steel cable.
- CNC billet alloy fairlead black anodised with laser etched Carbon logo for a premium finish.
- Isolator switch with extra cabling included safely cuts live power to the winch when not in use.
- Multi fit control box mounting mount on the winch, above the drum or motor, on your bull bar or on the vehicle with the included bracket.
- Rotating ring gear free spool clutch manual pull and twist handle for easy rope release.
- Full load automatic brake installed in the motor housing end plate for reliable holding under tension.
- 5 year electrical and water ingress warranty plus a lifetime mechanical geartrain warranty, backed by Australian held replacement parts.
Designed for rugged Australian off road and utility use. IP68 rated for dust and freshwater submersion. Note: do not operate the winch while submerged. Recommended minimum battery: 650 CCA.
Add the Carbon Offroad 12K winch to your cart now. Ships fast Australia wide from our Loganholme QLD warehouse. Klarna, Zip and Afterpay available.
FAQ
What is the rated pull capacity of the Carbon Offroad 12K winch?
The Carbon 12K is rated at 12,000 lbs (5,450 kg) single line pull, powered by a 6.2HP 12V series wound motor with a 3 stage planetary geartrain at a 216:1 ratio.
What does the IP68 waterproof rating actually mean?
IP68 means the winch is fully sealed against dust (rated 6) and can be submerged in freshwater up to 1.5 metres deep for 30 minutes (rated 8). The motor uses a breathable membrane breather to handle heat expansion and contraction. Do not operate the winch while submerged.
What remotes are included?
Both a wireless remote and a wired remote with a 3.7 m lead are included in the box. An isolator switch with extra cabling is also included so you can safely disconnect power when the winch is not in use.
What is included in the box?

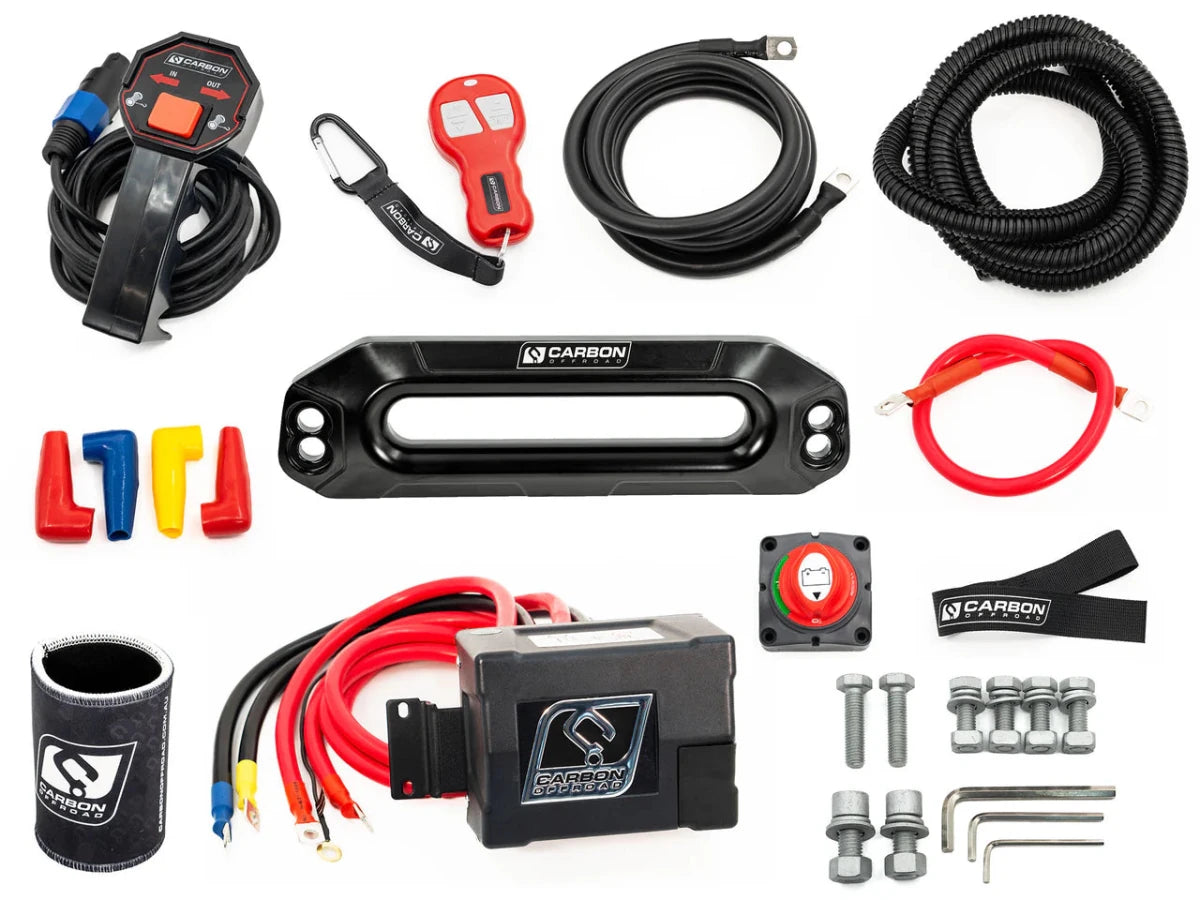

You get the 12K winch unit with synthetic rope (24 m x 10 mm), CNC billet alloy fairlead, wireless remote, wired remote (3.7 m lead), isolator switch with extra cabling, multi fit control box mounting bracket, mounting bolts, and a detailed installation guide.
What warranty does the Carbon Offroad 12K come with?
The winch is backed by a 5 year electrical warranty, a 5 year water ingress protection warranty and a lifetime mechanical geartrain warranty. Replacement parts are stocked in Australia.
